Episode 4: Chapter Thumbnail

This documents the Chapter Thumbnail feature — displaying chapter screenshots from MinIO S3 as a horizontal scroll row on published story cards in MyStoryListView. The backend screenshot generation pipeline (Episode 2) provides the images; this episode covers the REST endpoint for iOS to poll screenshot status and the iOS integration to fetch and display them.

Design / Architecture

Depends on Episode 2 (Chapter Screenshots). The screenshot generation pipeline must complete before thumbnails can be displayed. This episode adds the polling endpoint and iOS UI.

Backend (already done in Episode 2)

Screenshots stored in MinIO S3 at https://s3.travel-tube.com/chapter-screenshots/{youtubeContentID}/ch{i}_{time}s.jpg
ScreenshotJobStatus in MongoDB tracks generation progress
Bucket policy set to public read

Backend (new in this episode)

Screenshot status REST endpoint: GET /geo/data/screenshot-status/{youtubeContentID}

iOS Design

Published story card always reserves space for the chapter screenshot row
On appear, check Core Data for screenshotUrl on chapters:
- Has URLs → AsyncImage loads directly from MinIO
- No URLs → poll GET /auth/geo/data/screenshot-status/{youtubeContentID} every 5s
As screenshots become available, they appear one by one in the horizontal scroll
Save URLs to Core Data — no polling needed next time

UI Design

┌─────────────────────────────────┐
│  [YouTube thumbnail]     📕     │
│  "Mornington Peninsula..."      │
│  📅 multipleday        📍 5    │
│                                 │
│  ┌─────┐┌─────┐┌─────┐┌─────┐  │
│  │ ch1 ││ ch2 ││ ch3 ││ ch4 │→ │  ← horizontal scroll
│  │ 📷  ││ 📷  ││ 🔄  ││ ⬜  │  │
│  └─────┘└─────┘└─────┘└─────┘  │
│  🏕️ 🌏 🚶 🚴 🏊                │
└─────────────────────────────────┘

📷 = loaded from MinIO
🔄 = loading (AsyncImage placeholder)
⬜ = not yet available (polling in progress)

Why polling, not SSE? Screenshot generation takes 15-20s and happens async after story save. iOS already received SSE COMPLETED for the story save. Screenshots are a secondary, non-blocking enhancement — polling every 5s is sufficient and simpler than opening another SSE stream.

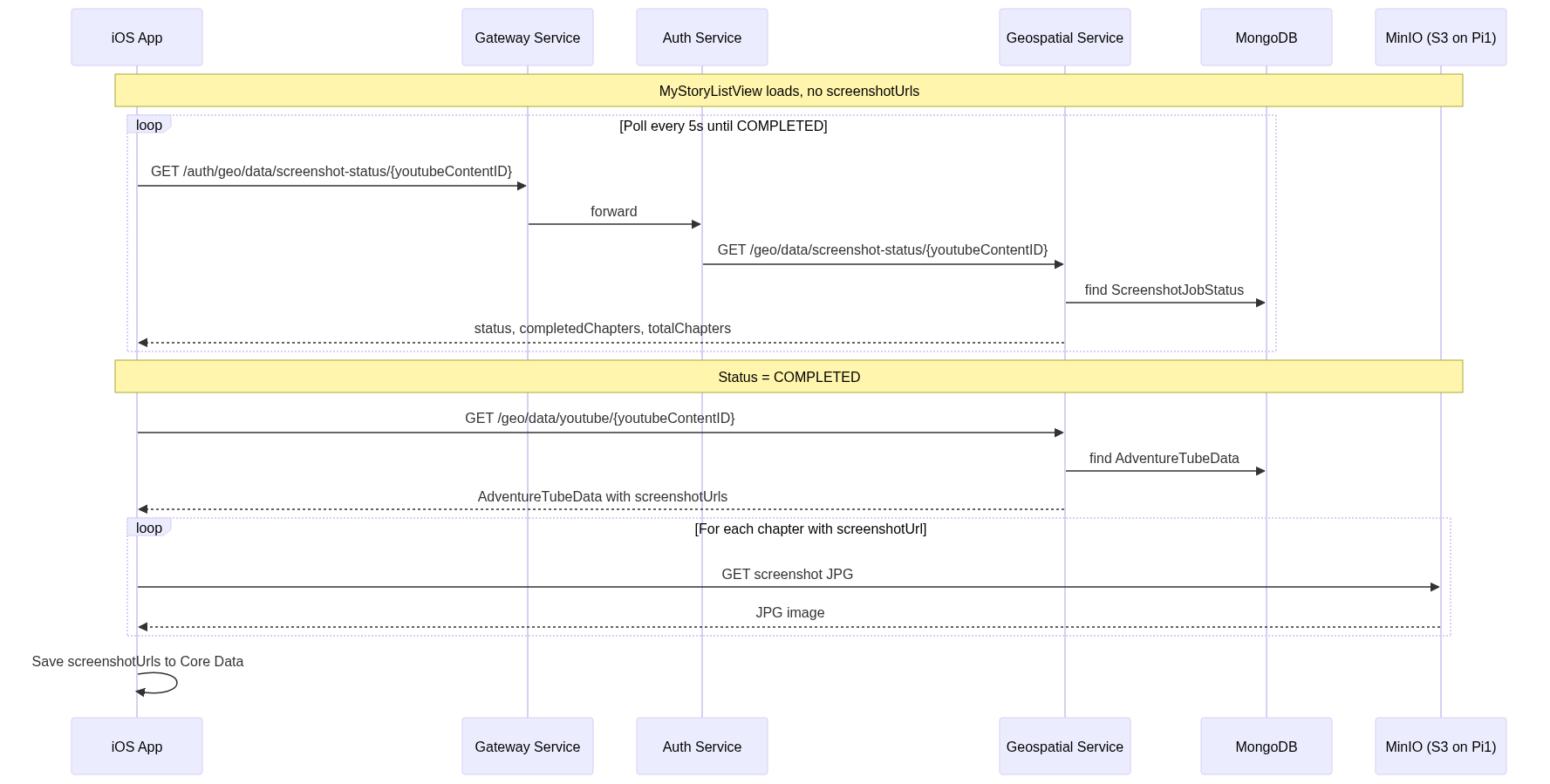

Sequence Diagram

iOS Call Stack: Thumbnail Polling Flow (TODO)

MyStoryListView.onAppear                            // MyStoryListView.swift
│
├─ for each published story without screenshotUrls:
│  └─ storyViewModel.startScreenshotPolling(youtubeContentID:)
│
startScreenshotPolling()                            // StoryViewModel (new)
│
├─ screenshotStatus = .polling(0, total)
│
├─ Timer.publish(every: 5.0)
│  └─ pollScreenshotStatus(youtubeContentID:)
│     └─ GET /auth/geo/data/screenshot-status/{id}
│
└─ .sink receiveValue:
   ├─ .COMPLETED → fetchUpdatedData(youtubeContentID:)
   │              → save screenshotUrls to Core Data
   │              → cancel timer
   ├─ .FAILED    → screenshotStatus = .failed, cancel timer
   └─ .PROCESSING → keep polling

--- UI rendering ---

ChapterThumbnailRow(chapters:)                      // ChapterThumbnailRow.swift (new)
│
├─ ScrollView(.horizontal)
│  └─ LazyHStack
│     └─ ForEach(chapters) { chapter in
│        ├─ if screenshotUrl != nil:
│        │  └─ AsyncImage(url: minioBaseURL + screenshotUrl)
│        │     ├─ .placeholder { ProgressView() }
│        │     └─ .failure { placeholderImage }
│        └─ else:
│           └─ Rectangle().fill(.gray.opacity(0.2))
│        }

Java Call Stack: Screenshot Status Endpoint (TODO)

AdventureTubeDataController
│  GET /geo/data/screenshot-status/{youtubeContentID}
│
├─ screenshotJobStatusRepository
│     .findByYoutubeContentID(youtubeContentID)
│  └─ Optional<ScreenshotJobStatus>
│
├─ .map(jobStatus -> ResponseEntity.ok(
│     ServiceResponse.builder()
│        .success(true)
│        .data(jobStatus)
│        .build()
│  ))
│  .orElse(ResponseEntity.notFound().build())
│
└─ return response

API Specification

GET /geo/data/screenshot-status/{youtubeContentID}

Response	Meaning	iOS Action
`{ "status": "PENDING" }`	Job created, not started	Keep polling
`{ "status": "PROCESSING", "completedChapters": 3, "totalChapters": 5 }`	In progress	Update progress UI, keep polling
`{ "status": "COMPLETED" }`	All screenshots ready	Fetch updated data, stop polling
`{ "status": "FAILED", "errorMessage": "..." }`	Generation failed	Show placeholder, stop polling
`404`	No screenshot job	Show placeholder, don’t poll

Screenshot URL Construction

Base URL: https://s3.travel-tube.com/chapter-screenshots/

Full URL: {baseURL}{chapter.screenshotUrl}

Example: https://s3.travel-tube.com/chapter-screenshots/WsghFCuoZ6Q/ch1_176s.jpg

TODO

Backend

Add GET /geo/data/screenshot-status/{youtubeContentID} REST endpoint
Add route in auth-service to proxy the endpoint
Add route in gateway-service

iOS

Add screenshotUrl property to Chapter Core Data model
Create ChapterThumbnailRow SwiftUI view (horizontal scroll with AsyncImage)
Add screenshot polling logic (Timer + API call)
Integrate into MyStoryListView published story cards
Cache screenshotUrl in Core Data after first successful fetch

Deployment

Install yt-dlp + ffmpeg in geospatial-service Docker image for Pi
Update Jenkins credentials with MinIO env vars
Deploy to K3s and test on Pi
